SW/Combiner

Daico has successfully deployed our (m+n)ART Architecture Transmitter for a historical ASR-3 Radar transmitter upgrade program in 2010. The unprecedented features of (m+n)ART SSTx are supported and achieved by utilizing Daico’s proprietary Switching Combiner Unit (SCU). By design principle, the (m+n)ART Transmitter Architecture defaults ‘m’ units “On-Line” and ‘n’ units in “Standby” mode during normal operation. (m+n) automatically detects failures among ‘m’ active LRUs, automatically fails-over one of ‘n’ standby units, if available, and places the failed LRU in “Off-Line” mode, and automatically optimizes the SCU output impedance without operational interruption. As a result, the redundancy built-in (m+n)ART Transmitters effectively removes LRUs from the critical path to achieve superior System MTBCF, Availability, and Reliability. Additionally, the critical SCU also enriches (m+n)SSTx the unprecedented Hot Swap and Graceful Degradation features with up to 30kW output peak power operation up to C-Band frequency.

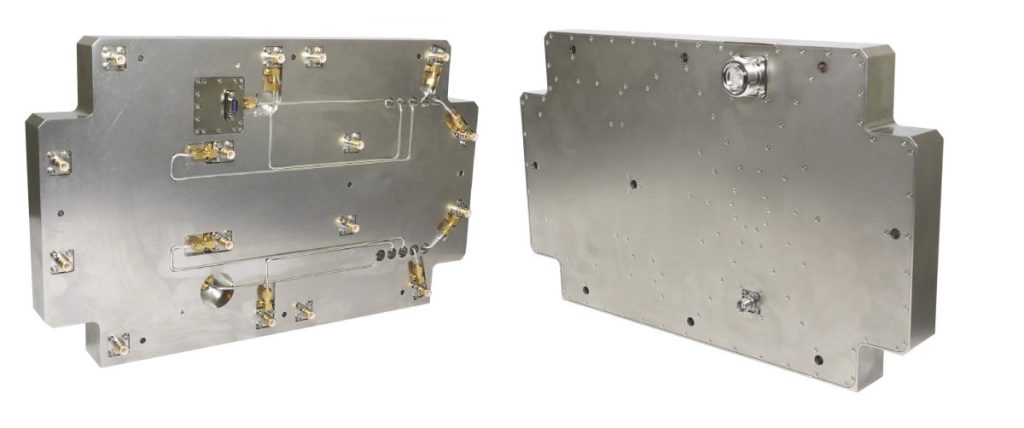

Daico has further developed our proprietary high power combining scheme with the introduction of Daico’s next-generation cost-cutting integrated Divider and next-generation radial Combiner concept (“Divider/Switching Combiner” Unit, or DSCU). It significantly reduces the implementation costs of (m+n)SSTx without compromising Availability, Reliability or Maintainability. Furthermore, we can integrate RF coupling and RF detection functions into the DSCU multi-function assembly (MFA) in the ultra-reliable cable-less high power CHPA building block, which can be conventionally combined to achieve hundreds (100s) of kW output power.

The successful implementations of our proprietary high power combining scheme involves a close team work with our customers seeking mission critical operations. Please let us know your specific Redundancy High Power Combining needs, we will discuss the requirements and develop the right MFA solutions for your applications with superior System MTBCF, Availability, and Reliability and the utmost quality.
